Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Flow: 10~2000 M3/hour
Head: 5~50 Meters
Material: High Chrome Alloy
Size: 3~10 Inch
Color: As You Want
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
YLS series hydraulic sand dredge pump is a multifunctional hydraulic driven dredging pump,mainly used as an excavator attachment taking place of grab bucket when there is too much water, mud and not suitable for digging. Everflowing hydraulic sand dredge pump is the most robust equipment for moving sand, slurry, gravel materials dredging.It is driven by the excavator hydraulic system or a separate hydraulic power pack.

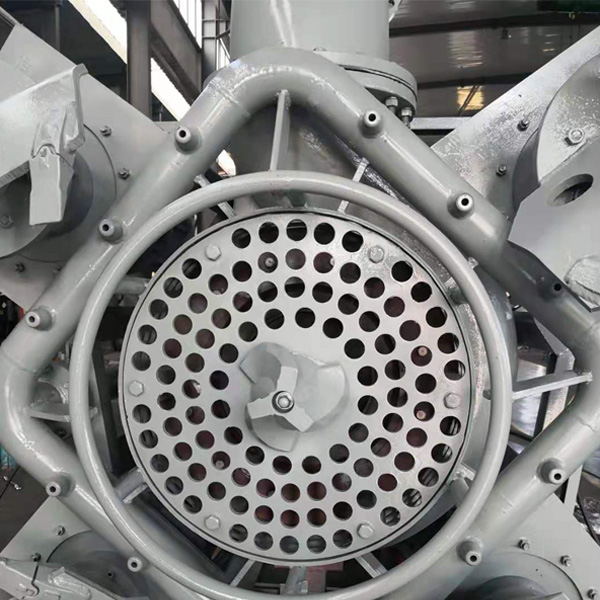

The mixing and excavating movement is created by the Hi-CR steel agitator cutter blades.
The agitator lifts and sucks settled sediments and solids, creating a continuous uninterrupted flow of concentrated slurry into the dredge pump.
Long life and performance reliability are guaranteed by robust, heavy-duty construction.
Lower operating RPM and High Chrome wear parts guarantees lower wear rates and prolonged component life.
SLAPK hydraulic submersible dredge pumps are suitable for 120, 150, 220, 240, 300, 330, 360 and other small, medium and large series of excavators. Besides, they are specialized for those circumstances that are difficulty to dig, such as much more water and watery sludge and sand. Remove the bucket and connect to the hydraulic mortar pump, concentration of extraction with high efficient and density could be achieved. The work efficiency improves greatly with the matching hydraulic slurry pump and long-distance transportation is also realized. In addition, it could be equipped with hydraulic station and applies to the harsh environment. Hence, several difficulty conditions could be dealt with such as excavators digging ineffectively, long-distance transportation of mud and mortar, lack of electricity supply and frequent switching conditions. In conclude, it can supply to various conditions.
• The bottom of the pump has a mixing device, and it also could be equipped with bilateral or multilateral agitator additionally in order to prevent large pieces of fixed material clogging the pump and fully making the solid and liquid mixed, thus it is more convenient to handle.
• This slurry pump can handle the solid material with maximum particle up to 50mm, extraction concentration of solid-liquid could be up to 70% or more.
Hydraulic submersible slurry pumps are one kind of hydraulic submersible pumps driven by hydraulic. They are ideal for applications were electric power is not available, or variable speed is needed for the slurry application.
The hydraulic submersible pump can be also install agitator to work like submersible dredge pumps, and in some place it also called hydraulic dredge pump. No matter where you are, if there is hydraulic supply the pump will work well.
Our Hydraulic submersible pumps wet wear parts use high chrome 27% material to match good wear resistance performance, the parts hardness can up to HRC62. If you have special material request for your condition, we accept customize material.
It is good choice of industries that face the most difficult pumping: Sewage By-Pass • Lime slurries • Mill scale • Coal runoff sumps • Wash down sumps • Ash transfer • Tailings ponds • Slag pits • Food wastes • Silt removal • Sand & gravel dewatering • Barge & tank cleanout
Hydraulic slurry pump is hydraulically driven instead of electrically driven which has more applications in deep water area and used for dredging different matters, it is one kind of centrifugal pump equipped with 2 or 3 agitator cutters which mix the mud or sand matters for suction. TheHydraulic slurry pump is mainly used as an excavator attachment taking place of grab bucket when there is too much water, mud and not suitable for digging. It is driven by the excavator hydraulic system or a separate hydraulic station to pump sand, sludge mortar etc.
NO. | Pump Type | DISCH. DIA |
CAP | Head | Power | Rotation speed | Eff. | Biggest particles discontinuous pass through |
(mm) | (m³/h) | (m) | (kw) | (r/min) | (%) | (mm) | ||
1 | ZJQB20-15-3 | 65 | 20 | 15 | 3 | 1460 | 45 | 12 |
2 | ZJQB25-20-4 | 65 | 25 | 20 | 4 | 1460 | 45 | 12 |
3 | ZJQB45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 45 | 13 |
4 | ZJQB30-30-7.5 | 80 | 24 | 31 | 7.5 | 1460 | 43 | 13 |
30 | 30 | |||||||
36 | 29 | |||||||
5 | ZJQB50-21-11 | 100 | 35 | 22 | 11 | 1460 | 48 | 21 |
50 | 21 | |||||||
60 | 20 | |||||||
6 | ZJQB50-26-11 | 80 | 35 | 29 | 11 | 1460 | 48 | 13 |
50 | 26 | |||||||
60 | 24 | |||||||
7 | ZJQB100-18-11 | 100 | 70 | 20 | 11 | 1460 | 55 | 21 |
100 | 18 | |||||||
120 | 15 | |||||||
8 | ZJQB25-40-15 | 80 | 18 | 41 | 15 | 1460 | 35 | 13 |
25 | 40 | |||||||
30 | 39 | |||||||
9 | ZJQB50-35-15 | 100 | 35 | 38 | 15 | 1460 | 47 | 13 |
50 | 35 | |||||||
60 | 32 | |||||||
10 | ZJQB60-30-15 | 100 | 42 | 33 | 15 | 1460 | 50 | 13 |
60 | 30 | |||||||
72 | 27 | |||||||
11 | ZJQB75-25-15 | 100 | 52 | 28 | 15 | 1460 | 51 | 13 |
75 | 25 | |||||||
90 | 22 | |||||||
12 | ZJQB150-15-15 | 150 | 105 | 17 | 15 | 1460 | 56 | 21 |
150 | 15 | |||||||
180 | 13 | |||||||
13 | ZJQB75-35-22 | 100 | 52 | 38 | 22 | 980 | 48 | 13 |
75 | 35 | |||||||
90 | 32 |
