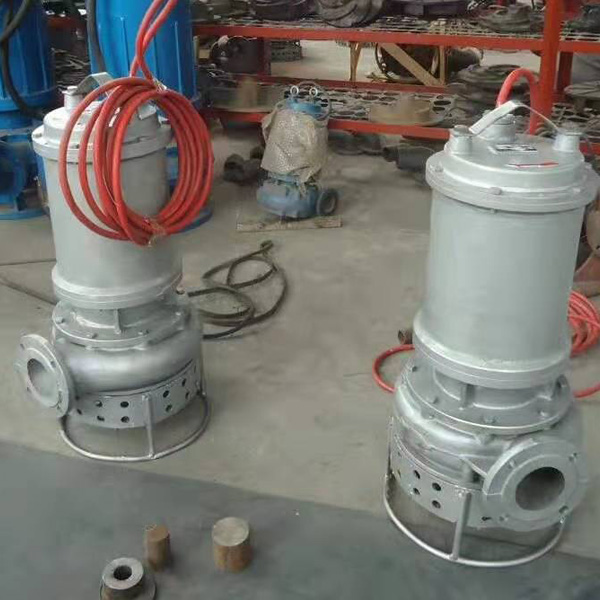

Submersible Slurry Pump mainly includes Electric Submersible Slurry Pump, Excavator-hydraulic Submersible Slurry Pump and Hydraulic Oil Station Submersible Slurry Pump.
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
SS series submersible slurry pump can be widely used in mining, electric power, metallurgy, coal, environmental protection and other industries to transport slurry with abrasive solid particles. For example, transportation of mineral slurry in metallurgical concentrator, hydraulic ash removal in thermal power plant, transportation of coal slurry and dense medium in coal preparation plant, dredging of river channel, river dredging, etc. In the chemical industry, it can also transport some corrosive slurry containing crystal.
At present, about 80% of slurry pumps are used in mineral processing plants of mining industry. Due to the poor working condition of ore primary separation, the service life of slurry pump in this section is generally low. Of course, different ores have different abrasivity.
MSP vertical slurry pump, the flow parts are made of super wear-resistant chromium steel alloy, which is mainly suitable for conveying corrosive, coarse particles and high-concentration slurries. It is widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other sectors. The pump head can be made into a pulley type. The pump can be lengthened under the liquid.
Vertical Slurry Pump includes MSP Slurry Pump and MSPR Rubber Lined Slurry Pump. If you want to know more, you can send us an email and we will get back to you soon.
1.model: XP(R)-100R slurry pump
2.Dia.LnLet/Outlet:175/100mm
3.Head range:5-36m
4.Allowable Max.Power:75KW
5.Speed range:500-1200r/min
6.Submersible length:900mm/1200mm/1500mm
SLAPK Brand XP/XPR Hard metal and rubber lined pumps are vertical centrifugal slurry pumps.They are designed for heavy continuous handling of abrasive and corrosive slurries whilst submerged in sumps or pit.
Our XP/XPR pump has no shaft seal, easy to maintenance and cost less. Hard metal and rubber parts are optional for different applications and interchangeable.
SLAPK Solids Control YZ Submersible slurry pump is used in drilling fluid solids control system to pump the large particle liquid in the tank. The submersible slurry pump made by RuiLin has good advantage of low price. So it can be treated as shale shaker feeding pump. It is vertical type save much space. Furthermore, it also can be decanter centrifuge’s feeding pump. YZ series slurry
pump impeller is semi opening type this provides high efficiency. The impeller material is carbide alloy make pump more durable decrease maintenance cost.
| Model | Flow rate | Head | Speed | Efficiency | Motor power | |
| m3/h | L/S | (m) | (RPM) | (%) | (KW) | |
| 50RLYZ50-20 | 25 | 6.9 | 12 | 1430 | 39.5 | 3 |
| 80RLYZ50-10 | 30 | 8.3 | 16 | 970 | 24 | 7.5 |
| 50RLYZ50-20 | 40 | 11 | 22 | 1440 | 41 | 7.5 |
| 65RLYZ50-12 | 50 | 13.8 | 12 | 1440 | 55.9 | 5.5 |
| 65RLYZ50-12A | 60 | 15.8 | 9.7 | 1440 | 55.2 | 5.5 |
| 80RLYZ80-20B | 80 | 22.2 | 13.4 | 1460 | 51 | 7.5 |
| 80RLYZ80-20A | 90 | 25 | 15.6 | 1460 | 51 | 11 |
| 80RLYZ80-20 | 100 | 27.2 | 18 | 1460 | 53 | 11 |
| 100RLYZ100-30A | 110 | 30.6 | 24 | 1470 | 54 | 18.5 |
| 100RLYZ100-30 | 120 | 33.3 | 28 | 1470 | 56 | 22 |
| 100RLYZ120-60A | 130 | 36.1 | 16 | 1480 | 50 | 45 |
| 100RLYZ160-38 | 160 | 44.4 | 39 | 1480 | 52 | 45 |
| 150RLYZ250-40B | 200 | 55.6 | 25 | 1480 | 50 | 37 |
| 150RLYZ250-40 | 250 | 69.4 | 40 | 1480 | 52 | 55 |
